Bearing selection
1.Allowable PV value and speed
Allowable PV values is calculated and studied by the contact pressure P(MPa) and circumferential speed V(m/min) before using the oil-impregnated sintered bearing.
【Calculation method】
- Calculation method of the contact pressure P : P(Mpa)=Radial load (N)/{Bore diameter(mm)×Length(mm)}
- Calculation method of the circumferential speed V : V(m/min)=Shaft diameter(mm)×π(circular constant)×Number of revolutions(min-1)×10-3
- Calculation method of the PV value : PV value(Mpa・m/min)=P(Mpa)×V(m/min)

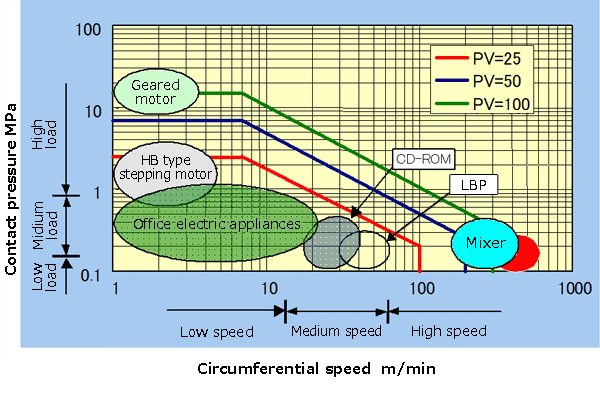

Generally recommended allowable PV values(Mpa・m/min) | |
---|---|
Application | Allowable PV values |
General-purpose machinery | 100 |
Household appliances | 50 |
Office electric appliances | 50 |
Low noise and low wear applications | 25 |
Especially low noise applications | 20 |
Axial loaded applications | 20 |
2.Bearing life
The life of the oil-impregnated sintered bearing is determined by the rate of consumption of the lubricating oil impregnated into the bearing.
Once 40% of the impregnated oil has been consumed, bearing performance deteriorates accordinaly.
In the case of a precisery small moter, severe noise and properties are required. So, the life is aimed by 30% of oil content.

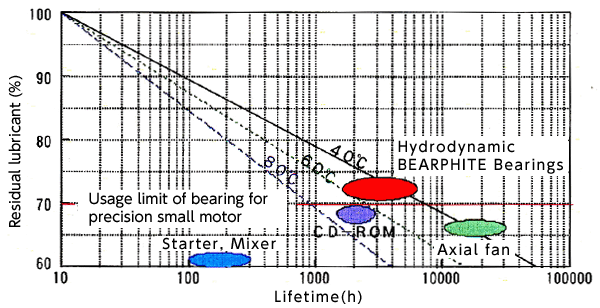

Basic bearings’ lifetime
