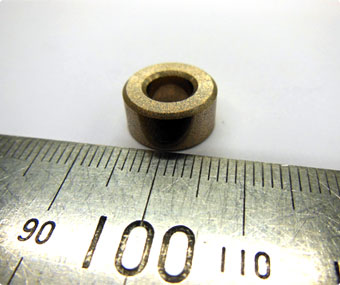

BEARPHITE CL

By developing materials and manufacturing methods, we have developed "BEARPHITE CL" which has excellent friction and ware characteristics, by depositing copper on the bearing surface even with a small amount of copper.

Characteristics

  Chemical component wt%
Fe Cu Other
Bronze based material - 90 10
Developed material 78 20 2
  • Even with a small amount of copper, friction and wear characteristics are ensured by depositing copper on the bearing surface.

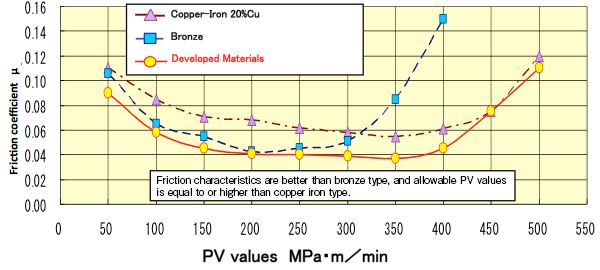

  • Sliding performance is equal to or better than bronze sinter bearings.
  • Durability is equal to or better than conventional copper-iron materials.
Examples of use
  • Automotive electrical components: Power window motor, Blower fan motor
  • Information equipment: Cooling fan motor
  • Office equipment: Photocopier, Laser printer

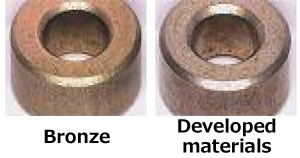

Forming thin layler of copper on the surface.

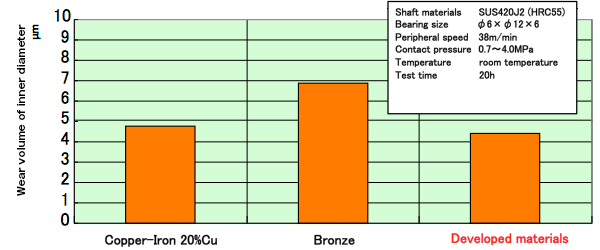

Fig. Comparision of inner diameter wear
