Magnets for sensors

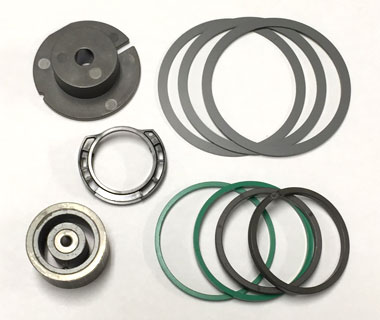

Isotropic Nd-Fe-B bonded magnets used as magnets in various types of sensors.
There are compression molding type and injection molding type and can be chosen by shapes and performance.

Characteristics

  • The compression molding type has high magnetic force by high-density molding.
  • The injection molding type has high shape flexibility and can support thin and large diameter products.

Magnetism properties

  Unit NT-862
Injection molding
NT-852
Compression molding
AS4M AS6M Wide use Heat resistance High output
RE8M AE10M ME10M ME12M
Residual magnetic flux density Br mT 435 530 613 680 710 760
kG 4.4 5.3 6.1 6.8 7.1 7.6
Retention force bHc

kA/m

310 350 418 467 454 500
kOe 3.9 4.4 5.3 5.9 5.7 6.3
iHc kA/m ≧880 ≧830 ≧630 ≧770 ≧630 ≧630
kOe ≧11.1 ≧10.5 ≧7.9 ≧9.7 ≧7.9 ≧7.9
Maximum energy product (BH)max kJ/m³ 34 48 64 79 80 96
MGOe 4.2 6.0 8.0 10.0 10.1 12.1
Binder PPS Epoxy resin

Measured with B-H Tracer (Φ12.7×Φ7.7×4.8 non-painting )

Note) Numerical value mentioned above is representative measurements. It is not guaranteed performance.
This contents may be changed without a notice for performance enhancement. Please understand it.
