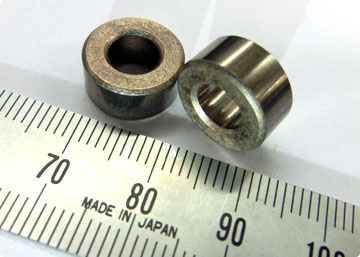

Self-lubricating BEARPHITE
By using special graphite and optimizing material composition, we have developed "Self-lubricating BEARPHITE" that can be used in environments not suited to oil lubrication.
Characteristics
- By adding graphite 5 times (or more) than the bronze based material, excellent sliding properties is ensured even in a dry environment.
- Optimized material composition secures formability in manufacturing process
- Has conductivity because it is not oil- impregnated.
| Material | Chemical Components wt% | ||
|---|---|---|---|
| Cu | C | other | |
| Developed material | 85 | 5 | 10 |
| Bronze based material | 89 | 1 | 10 |
Examples of use
Bearings for office equipment
Power supply Chip for photocopiers
Bearings for head lamp

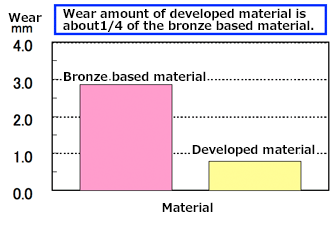

Friction and wear
Test conditions
- Rotation speed 450 min-1
- Load 15 N
- Test time 1h
- Shaft materials SUS420J2
| Material | Wear rate |
|---|---|
| Developed material | 0.2 〜 0.3 |
| Bronze based material | NON Oil-Impregnated : about 0.45 Oil-Impregnated : about 0.1 |
1/2 wear rate in dry environment, compared with bronze based materials.
